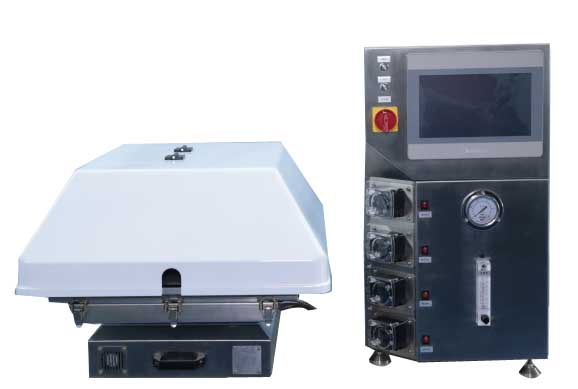

This benchtop bioreactor is a wave-mixed bioreactor featuring sterilized cell culture bags and rocking platform. It is capable of automatic monitoring and controlling of temperature, pH, dissolved oxygen (DO) and pressure to realizing automatic cell cultivation process. Load cells automatically control the weight of culture solution.
The wave-mixed single-use bioreactors are suitable for continuous perfusion of T cells, expression of monoclonal antibody in CHO cells, transient transfection of 293 cells/S2 cells, adenovirus production, PER C6 cells and microcarriers (Vero, MDCK) cell cultivation, virus cultivation, stem cell cultivation, bacterial fermentation and microbial fermentation.
You can contact us for a quotation or with any questions you may have on this product.
| Basic specifications | Overall size (L*W*H): 740*620*500 (mm) Machine weight: 35KG Working volume: 2-10L Material of structure/tray: 304 stainless steel Material of lid: ABS Controller size (H*W*D) 650*370*500 (mm) Controller weight: 40KG Controller material: 304 stainless steel Surface finishing: Ra0.8 brushed |
| Rocking | Rocking angle: 4°- 15° Rocking speed: 8-50 r/min |
| Motor | Voltage: 220V Power: 0.4KW |
| Load cell | Signal type: 4-20mA |
| Mass flow meter | Air: 0-1L Oxygen: 0-0.5L Carbon dioxide: 0-0.5L |
| Electrode | Temperature electrode: pT100 accuracy ±0.2oC pH electrode: optical patch DO electrode: optical patch |
| Heating blanket | Electrical heating blanket (F/U): 600W/220V Built-in temperature control relay: < 85 oC Built-in temperature sensor: PT100 |
| Main electrical elements | Siemens: PLC1200 Peristaltic pump: 114 series |
| Basic specifications | Overall size (L*W*H): 780*750*500 (mm) Machine weight: 50KG Working volume: 2-25L Material of structure/tray: 304 stainless steel Material of lid: ABS Controller size (H*W*D) 650*370*500(mm) Controller weight: 40KG Controller material: 304 stainless steel Surface finishing: Ra0.8 brushed |
| Rocking | Rocking angle: 4°- 15° Rocking speed: 8-50 r/min |
| Motor | Voltage: 220V Power: 0.4KW |
| Load cell | Signal type: 4-20mA |
| Mass flow meter | Air: 0-1L Oxygen: 0-0.5L Carbon dioxide: 0-0.5L |
| Electrode | Temperature electrode: pT100 accuracy ±0.2oC pH electrode: optical patch DO electrode: optical patch |
| Heating blanket | Electrical heating blanket (F/U): 800W/220V Built-in temperature control relay: < 85 oC Built-in temperature sensor: PT100 |
| Main electrical elements | Siemens: PLC1200 Peristaltic pump: 114 series |
| Basic specifications | Overall size (L*W*H): 1250*600*1350 (mm) Machine weight: 180KG Working volume: 2-50L Material of structure/tray: 304 stainless steel Material of lid: ABS Controller size (H*W*D) 650*370*500 (mm) Controller weight: 40KG Controller material: 304 stainless steel Surface finishing: Ra0.8 brushed |
| Rocking | Rocking angle: 4°- 15° Rocking speed: 8-50 r/min |
| Motor | Voltage: 220V Power: 0.75KW |
| Load cell | Signal type: 4-20mA |
| Mass flow meter | Air: 0-1L Oxygen: 0-0.5L Carbon dioxide: 0-0.5L |
| Electrode | Temperature electrode: pT100 accuracy ±0.2oC pH electrode: optical patch DO electrode: optical patch |
| Heating blanket | Electrical heating blanket (F/U): 1200W/220V Built-in temperature control relay: < 85 oC Built-in temperature sensor: PT100 |
| Main electrical elements | Siemens: PLC1200 Peristaltic pump: 114 series |
