Single-use bioreactor is a complete cell culture system with a single-use bioreactor bag which is
also known as disposable bag. This disposable bioreactor is perfectly suited for cultivation of
various cell lines in suspension.
Single-use bioreactor eliminates the need for CIP/SIP operation and validation. Compared with
conventional bioreactor systems linked by fixed stainless steel piping network, the design of
overall assembly makes this single-use bioreactor system more conductive to quick installation and
start-up, showing great advantages in switching between batches of cultivation and flexibility of
cultivation process.
Inquiry
You can contact us for a quotation or with any questions you may have on this product.

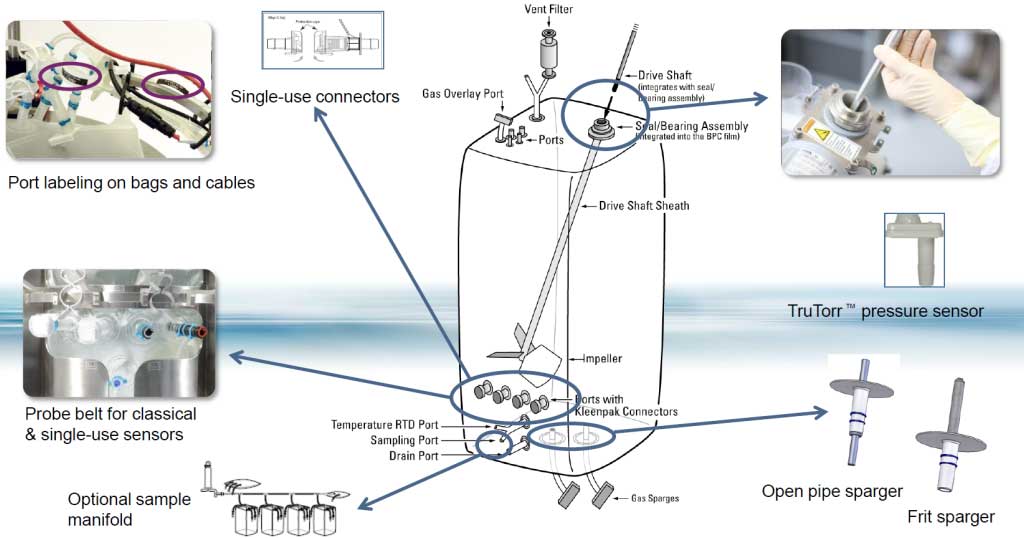

Structure

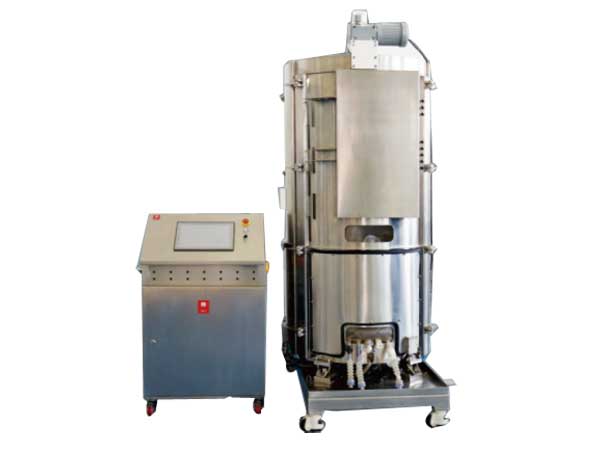

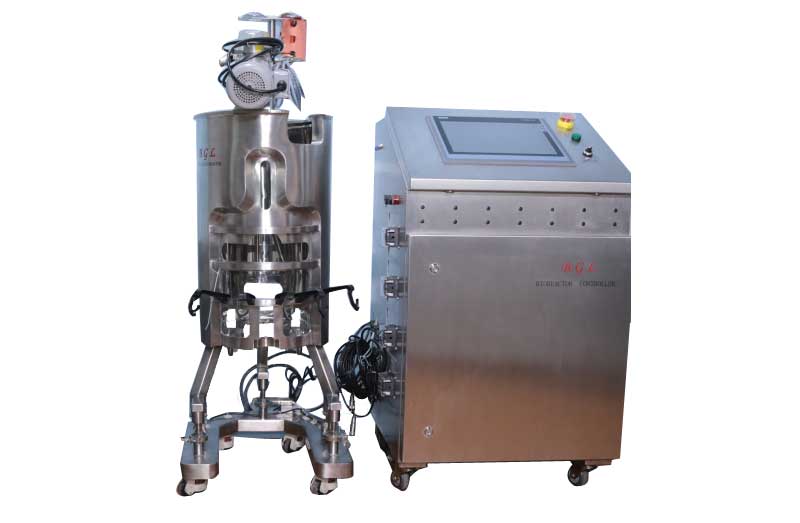

BGL-TB Series Single-use Bioreactor with Top-mounted Magnetic
Agitator

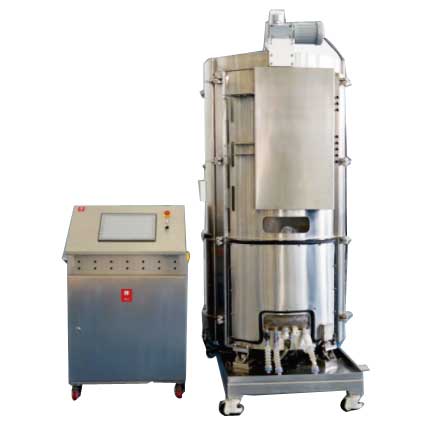

BGL-TB1000L
Based on the stainless steel stirred tank bioreactors which are widely used for years, BGL-TB series
single-use bioreactor with top-mounted magnetic agitator is designed and manufactured with advantages
of easy assembling of disposable bag, simple operation, time saving and low labor intensity. It is a
perfect solution to replace stainless steel bioreactors.
Basic Specifications
BGL-TB50L
Rated working volume (L): 50
Min. working volume (L): 15
Total volume (L): 65
Bag diameter (cm): Φ35
Width*Length*Height (cm): 47*56*122
Impeller (stage): 1
Impeller diameter (cm): 13
Stirring speed (rpm): 30-300
BGL-TB100L
Rated working volume (L): 100
Min. working volume (L): 30
Total volume (L): 130
Bag diameter (cm) : Φ44
Width*Length*Height (cm): 60*70*140
Impeller (stage): 2
Impeller diameter (cm): 16
Stirring speed (rpm): 30-300
BGL-TB250L
Rated working volume (L): 250
Min. working volume (L): 75
Total volume (L): 310
Bag diameter (cm): Φ60
Width*Length*Height (cm) : 80*75*160
Impeller (stage) : 2
Impeller diameter (cm): 23
Stirring speed (rpm): 30-200
BGL-TB500L
Rated working volume (L): 500
Min. working volume (L): 150
Total volume (L): 650
Bag diameter (cm) : Φ76
Width*Length*Height (cm): 80*110*195
Impeller (stage): 2
Impeller diameter (cm): 29
Stirring speed (rpm): 30-200
BGL-TB1000L
Rated working volume (L): 1000
Min. working volume (L): 300
Total volume (L): 1320
Bag diameter (cm) : Φ96
Width*Length*Height (cm): 110*130*240
Impeller (stage): 3
Impeller diameter (cm): 36
Stirring speed (rpm): 20-150
BGL-TB2000L
Rated working volume (L): 2000
Min. working volume (L): 600
Total volume (L): 2100
Bag diameter (cm): Φ120
Width*Length*Height (cm): 132*137*321
Impeller (stage): 3
Impeller diameter (cm): 45
Stirring speed (rpm): 20-100
Control Accuracy
Mixing rate
Control accuracy: ±1% rpm
Culture temperature
Control range: 0-40 °C; Control accuracy: ±0.2°C; Resolution: 0.1 °C
Electronic weighing scale
Measuring accuracy: ±0.3%

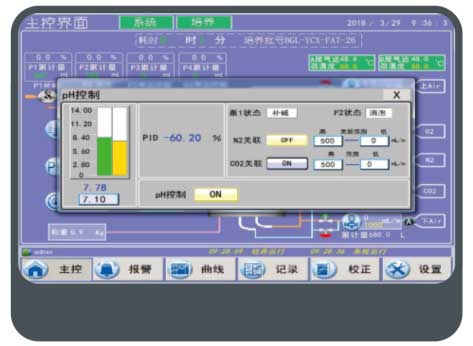

PH accuracy
Control range: 2-12; Control accuracy: ±0.1; Resolution: 0.01

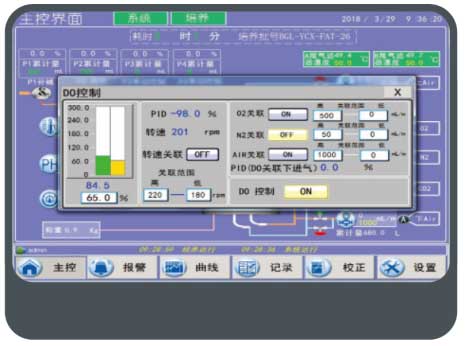

DO accuracy
Control range: 0-100%; Display range: 0-300%; Control accuracy: ±2%; Resolution:
0.1%
Gas flow
Control accuracy: ±1%; Resolution: 0.1%
Quantity of mass flow meters
5
Standard Configuration of Instruments

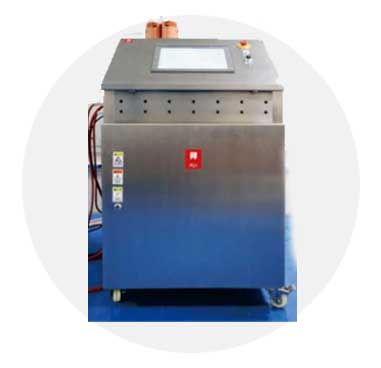

PLC control unit: Siemens 1200
Quantity of weighing modules: 3
Quantity of pH electrodes: 1
Quantity of DO electrodes: 1
Quantity of tank temperature electrodes: 1
Quantity of pressure sensor: 1

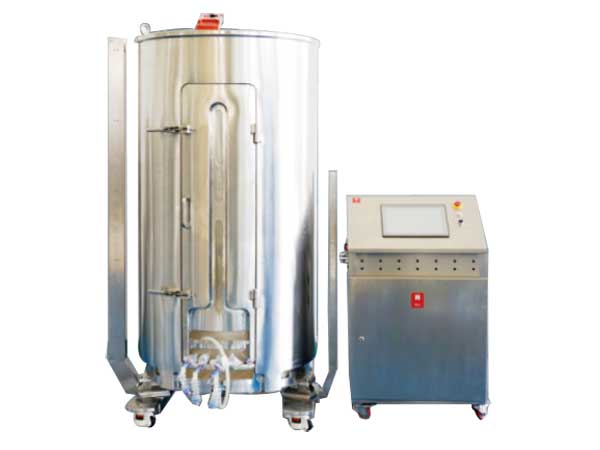

BGL-BB Series Single-use Bioreactor with Bottom-mounted Magnetic
Agitator
Basic Specifications
BGL-BB50L
Rated working volume (L):50L
Min. working volume (L):10L
Total volume (L):65L
Bag diameter (cm):Φ35
Width*Length*Height (cm):47*56*122
Impeller (stage):1
Impeller diameter (cm):13
Stirring speed (rpm):30-300
BGL-BB100L
Rated working volume (L):100L
Min. working volume (L):20L
Total volume (L):130L
Bag diameter (cm):Φ44
Width*Length*Height (cm):60*70*140
Impeller (stage):2
Impeller diameter (cm):16
Stirring speed (rpm):30-300
BGL-BB250L
Rated working volume (L):250L
Min. working volume (L):50L
Total volume (L):310L
Bag diameter (cm):Φ60
Width*Length*Height (cm):80*75*160
Impeller (stage):2
Impeller diameter (cm):23
Stirring speed (rpm):30-300
BGL-BB500L
Rated working volume (L):500L
Min. working volume (L):100L
Total volume (L):650L
Bag diameter (cm):Φ76
Width*Length*Height (cm):80*110*195
Impeller (stage):2
Impeller diameter (cm):29
Stirring speed (rpm):30-300
BGL-BB1000L
Rated working volume (L):1000L
Min. working volume (L):200L
Total volume (L):1320L
Bag diameter (cm):Φ96
Width*Length*Height (cm):110*130*240
Impeller (stage):3
Impeller diameter (cm):36
Stirring speed (rpm):30-300
BGL-BB2000L
Rated working volume (L):2000L
Min. working volume (L):400L
Total volume (L):2100L
Bag diameter (cm):Φ120
Width*Length*Height (cm):132*137*321
Impeller (stage):3
Impeller diameter (cm):45
Stirring speed (rpm):20-300
Control Accuracy
Mixing rate
Control accuracy: ±1% rpm
Culture temperature
Control range: 0-40 °C; Control accuracy: ±0.2°C; Resolution: 0.1 °C
Electronic weighing scale
Measuring accuracy: ±0.3%
PH accuracy
Control range: 2-12; Control accuracy: ±0.1; Resolution: 0.01
DO accuracy
Control range: 0-100%; Display range: 0-300%; Control accuracy: ±2%;
Resolution: 0.1%
